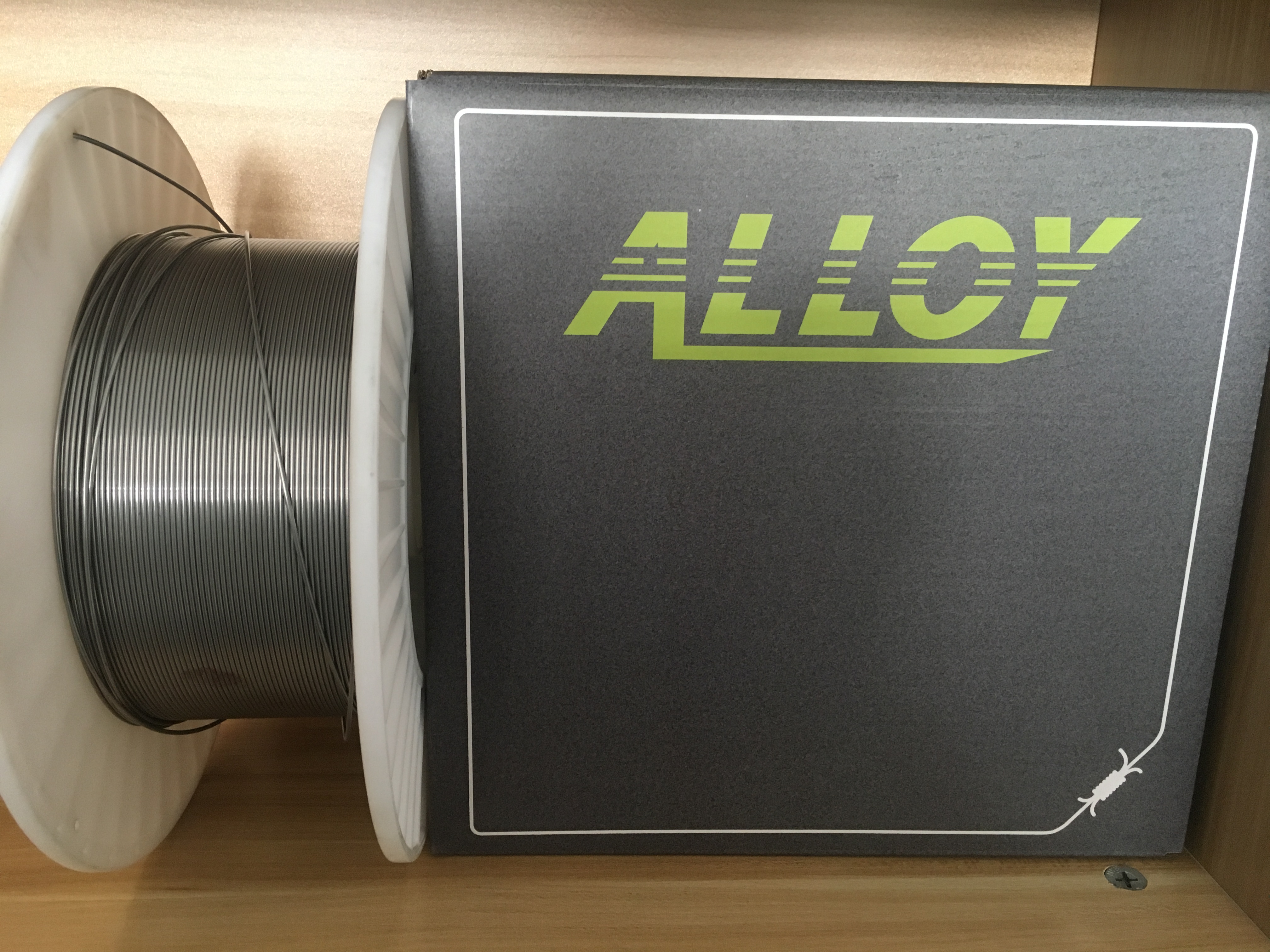

Hard Facing ALLOY-CN

Hard Facing ALLOY-CN

Flux core wire for self shielded metal open arc welding
Products Inquiry

Description

1. Features
  • High chromium cast iron series is used for hard faced components, and metal cored flux cored welding wires are severely worn and medium impacted by the machine.
  • Hardfacing materials that effectively prevent soil, sand or other abrasive grinding.
  • Niobium carbide and chromium carbide carbide have good wear resistance to high hardness fine abrasive particles.

2. Applications
  • Overlay welding of roller press pattern layer and vertical mill hard surface layer.
  • Material conveying equipment and metallurgical conveying equipment in steel industry, such as ladle and tooth surfacing strengthening.
  • Dredger bucket, towing bucket, coke hammer.
  • Pump impeller, fan blade, stone roller, wear plate.

3. Typical all-weld metal analysis

   Element       C       Cr       Si       Mn       Nb            Fe
   Minimum   4.0 21.0 0.5 0.2 5.0    Balance
   Maximum   6.0 24.0 1.0 1.0 7.0    Balance


4. Typical all-weld Metal Mechanical properties
                              Hardness          HRC
        Welding layer (more than 3 layers)               62~64


5. Wire diameter and Packing method
          Wire diameter (mm)          1.2, 1.6      2.4, 2.8, 3.2
Packing method
     Reel (EN759:BS 300)
 Drum
Net weight (KG) 15             250


6. Welding Parameters
Wire diameter (mm)        1.6 2.8
Current polarity    DC reverse connection       DC reverse connection
Welding Process Open arc welding Open arc welding
Voltage (V) 22-28 26-32
Current (A) 150-280 300-450
Extension length (mm) 15-25 25-35
Shielding gas Self shielded  Self shielded
Welding position  Flat welding Flat welding
